We not only provide complete Sodium hypochlorite generation system, but also the core component of machine-----electrodes and cells(sodium hypochlorite Electrolyzer). The electrodes is made of pure Titanium, with ruthenium & iridium oxide coating which ensure over 5 years coating life, over 18 years base material, reduce the chlorine evolution potential and electricity consumption.
Product Description

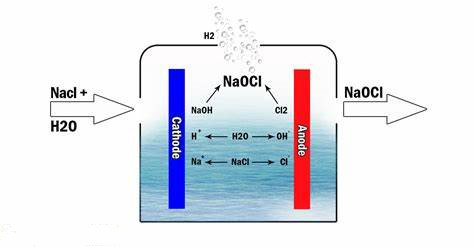

Electrolyzer(electrodes or electrolysis cell) is designed for producing 8000ppm-10000ppm sodium hypochlorite through 2-5% brine, which is stable and safety running on-site.The electrolysis unit adopts a membrane-free electrolysis unit.
We not only provide complete Sodium hypochlorite generation system, but also the core component of machine-----electrodes and cells. The electrodes is made of pure Titanium, with ruthenium & iridium oxide coating which ensure over 5 years coating life, over 18 years base material, reduce the chlorine evolution potential and electricity consumption.
Technology Comparison
Part of the Specifications：（Other specifications can be customized）
available chlorine (g/h) | DC/A | DC/V | Capacitance pressure | Flow (L/h) | Brine concentration |
50g/h | DC/A≤60A±20% | DC/V≤5V | ≤0.2MPa | 7L/h----8L/h | 2-5% |
100g/h | DC/A≤125A±20% | DC/V≤5V | ≤0.2MPa | 20L/h----25L/h | 2-5% |
300g/h | DC/A≤84A±20% | DC/V≤20V±5% | ≤0.2MPa | 30L/h----35L/h | 2-5% |
500g/h | DC/A≤120A±20% | DC/V≤30V | ≤0.2MP | 75L/h----85L/h | 2-5% |
1000g/h | DC/A≤156A±20% | DC/V≤40V | ≤0.2MPa | 105L/h----110L/h | 2-5% |
2000g/h | DC/A≤185A±20% | DC/V≤50V | ≤0.2MPa | 135L/h----145L/h | 2-5% |
Constituent Part

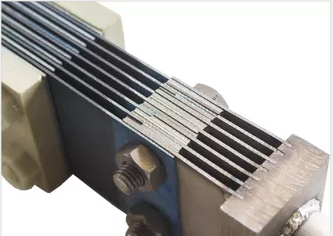

Electrode (electrolyzer)
1) Ensure lower power and salt consumption, high chlorine production and long service life;
2) 2mm thickness pure titanium electrode – ensure long service life ;
3) Small space occupation;
4) Low running cost, long service life;
5) 2-3mm thickness pure titanium electrode, 25 times ruthenium iridium oxide coating,
6) High-frequency, stability and constant current power specialized for ship-leveled electrolytic power. Electric conversion efficiency: ≥92%
Application
1、Sodium hypochlorite generator
2、electrolytic production of chlorine from brine
3、Electrolytic disinfection equipment
4、water treatment
Specifications
Main Features

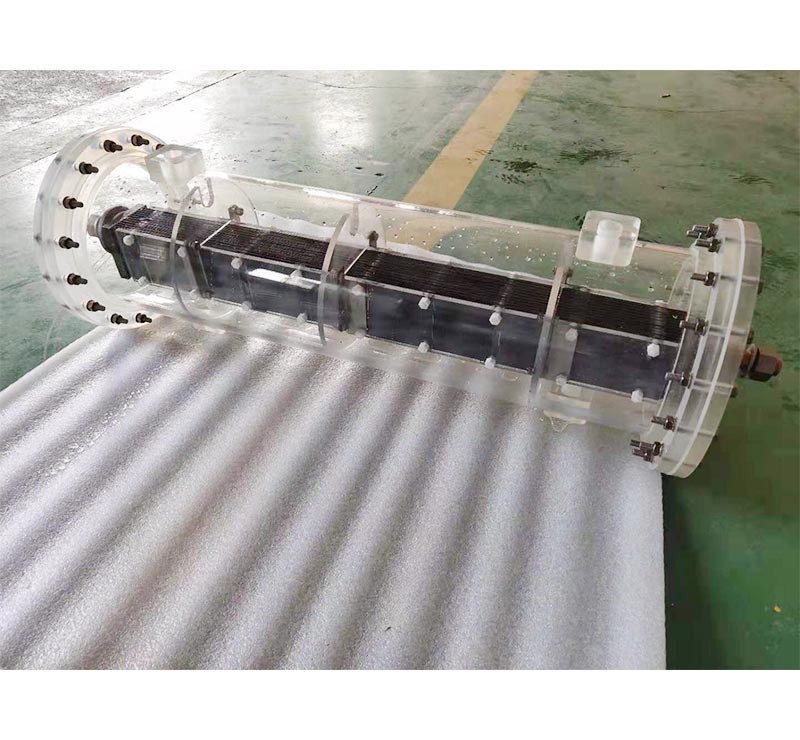

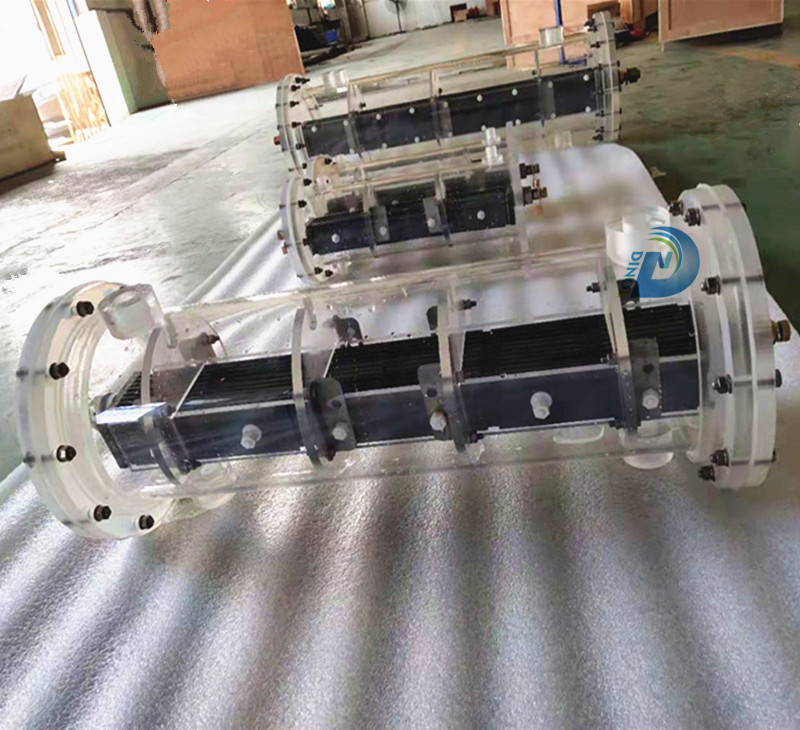

1. The tube type electrolytic cell is made of transparent UPVC pipe or PMMA, and has the advantages of corrosion resistance, high stability and long service life.
2.Titanium flange and titanium welding-prevent high voltage,ensure firm welding and high efficiency.
3.The titanium electrode, using patent technology of electrode structure,sharply low down the consumption of electricity and salt, the chlorine evolution potential<1.132V HIL, consumption of salt<3.5Kg/Kg.CL, 4.OKW/Kg.CL power consumption, much better performance than normal electrode.
4.The anode is covered by ruthenium, iridium oxide fine Nanometer coating,which is up to 20-25 layers ,ensure a very long service life (5 years warranty).
