  • Sodium hypochlorite generator from Seawater

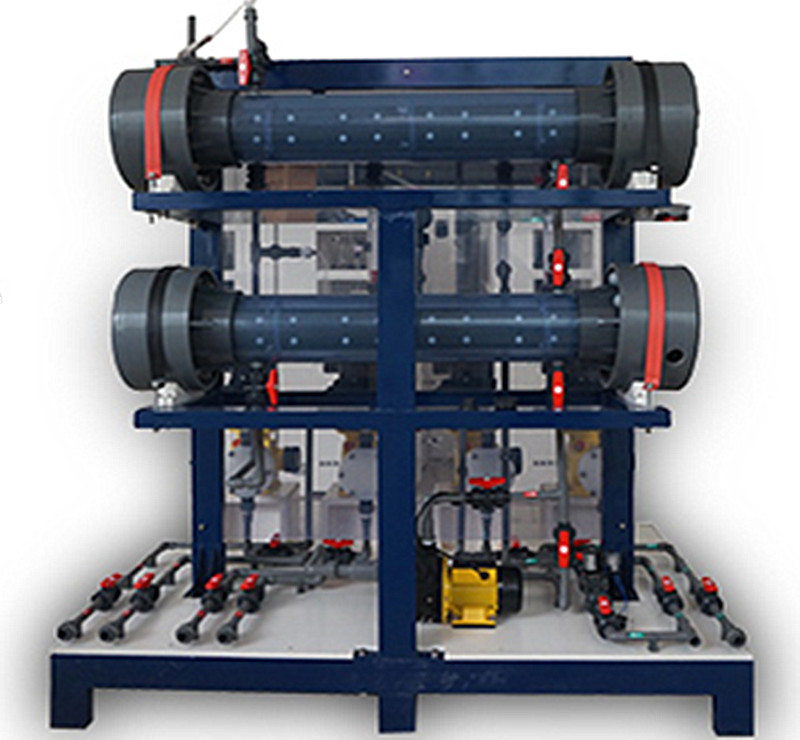

Sodium hypochlorite generator from Seawater

 This electrolysis seawater chlorine production system developed by our company only uses seawater with absolutely zero chemicals to generator 6000-8000ppm sodium hypochlorite solution through the electrolysis system.


Product Description

  This electrolysis seawater chlorine production system developed by our company only uses seawater with absolutely zero chemicals to generator 6000-8000ppm sodium hypochlorite solution through the electrolysis system.

   The whole set of equipment is easy to operate and easy to maintain. yet maintains stable sterilization power, high resistance, and is low cost, insuring investment return in a short time, which is one of the merits of this device.


Technology Comparison

As producing hypochlorite on-site and on-demand, the system eliminates concerns associated with transportation and storage of liquefied chlorine gas or commercial sodium hypochlorite solutions, It’s a ideal for any application requiring chlorination.

Constituent Part

System composition:

Seawater Booster Pump

Auto Backwash Strainer

Electrolyzer (mmo coating titanium anode and cathode)

power supply

Programmable Logic Controller(PLC center)

Storage Tank

Air Blowers

Metering Pump

Acid Washing cell

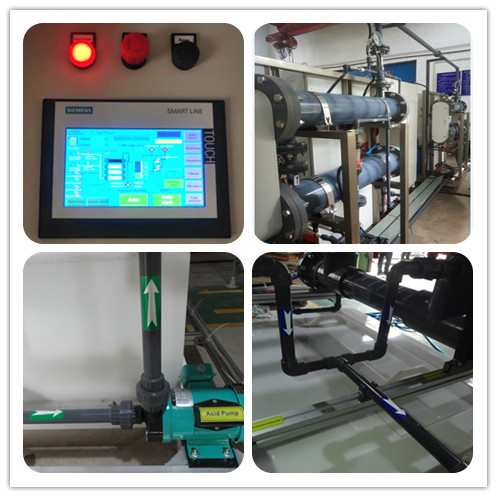

Sodium hypochlorite generator from Seawatersodium hypochlorite from seawater system .jpg

Application

Power Generation plant

Petrochemical station

Mariculture aquaculture

Desalination Plant

Ocean anti-fouling

other disinfection or water cleaning application


Specifications


TYPEDN-S500

DN-S1000

DN-S2000

Others

Available chlorine (g/h)500g/h

1000g/h

2000g/h

30000-100000g/h

DC/V

≤30V/DC

≤40V/DC≤40V/DC
DC/A

≤120A/DC±20%

≤160A±20%≤435A±20%
Flow (L/h)75L/h--85L/h105L/h--110L/h240L/h--270L/h
Capacitance pressure≤0.2MPa≤0.2MPa≤0.2MPa
Other specifications According to customer needsAccording to customer needsAccording to customer needsAccording to customer needs
